The SAILOR 6130 mini-C LRIT comes complete with all cables and connectors included, making it ready to go out of the box. The standard connection cable to the mini-C terminal is 30M long, but can be extended up to 200M.

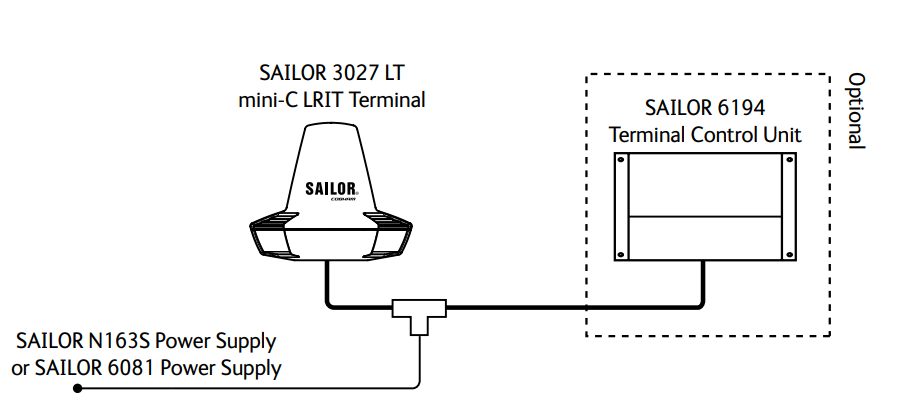

The SAILOR 6130 mini-C LRIT features a new, optional Thrane 6194 Terminal Control Unit (TCU), which brings new functionalities to support day-to-day operation whilst ensuring compliance. It has a range of LEDs so operators may quickly determine status such as power, Inmarsat log-in, GPS fix, and whether a running program is present in the terminal. This information can determine the operational status of the system towards your flag ASP or other physical inspections.
DIMENSIONS AND WEIGHT
mini-C Terminal
- Diameter: 170.5 mm
- Height: 145 mm (without pole mount)
- Weight: 1.1 kg
Terminal Control Unit
- Dimensions: 239 mm x 172 mm x 54 mm
- Weight: 0.8 kg
TERMINAL CONTROL UNIT SPECIFICATIONS
Interface options:
- CAN interface NMEA2K mini
- RS-232
- LAN interface RJ45
POWER SPECIFICATIONS
- Absolute power supply range: 10.5 – 32 VDC
- Nominal power input: 15 VDC
Inmarsat offers global coverage excepted poles
