Intellian OW10HV

Land - Fix

The OW10HV is the ideal flat-panel user terminal for first responder, forestry, and transportation markets, offering a compact, lightweight, and sleek design engineered to outperform existing connectivity solutions.

Land

Connectivity Fixed – Mobile (in motion – pause)

57/10 Mbps

Download speeds up to 57 Mbps, upload up to 10 Mbps

~100 ms

Latency

>99%

Availability

Key Features

Optimized Performance

Thanks to its innovative antenna design, the OW10HV provides optimal performance in a compact form factor, making it the ideal connectivity solution for SWaP-constrained applications (Size, Weight, and Power). This ensures a high-quality user experience and service level that meets customer expectations.

Continuous Connectivity

The OW10HV integrates advanced tracking technology developed by Intellian, enhancing connection reliability and availability—even on rough routes or at very low elevation angles near the equator. Its flat-panel technology minimizes loss during scanning, allowing smooth and reliable transitions for uninterrupted connectivity.

Extreme Environment Performance

Designed for reliable operation in the most demanding conditions, the OW10HV functions in extremely low temperatures down to –40°C and high temperatures up to +55°C (–40°F to +131°F).

Simplified Installation

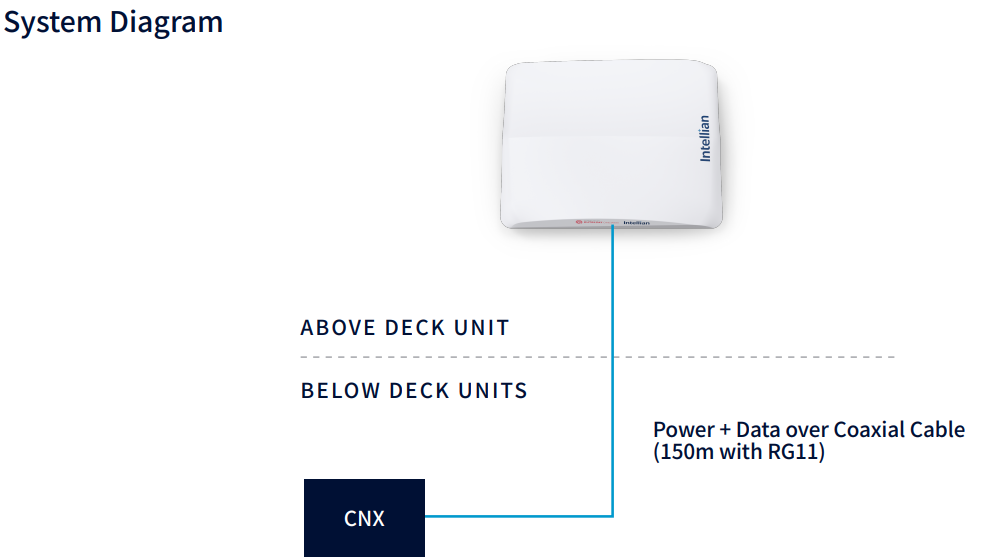

With its lightweight and compact design, the OW10HV can be installed by a single person. When paired with Intellian’s land-mobile mounting adapter, this user terminal can be mounted on vehicles of all sizes. Installation is further simplified with a single coaxial cable for both power and data, connecting the outdoor unit to the CNX. Intellian’s mobile app enables automated setup and monitoring, further reducing the time needed to go online.

Technical Specifications

Dimensions	56 x 45 x 12 cm
Weight	12,2 kg
Throughput	Up to DL: 60 Mbps / UL: 10 Mbps
Operating temperature	-40 °C to +55 °C
Ingress Protection	IP66

Documentation

Services

The OW10HV delivers high-performance satellite connectivity.

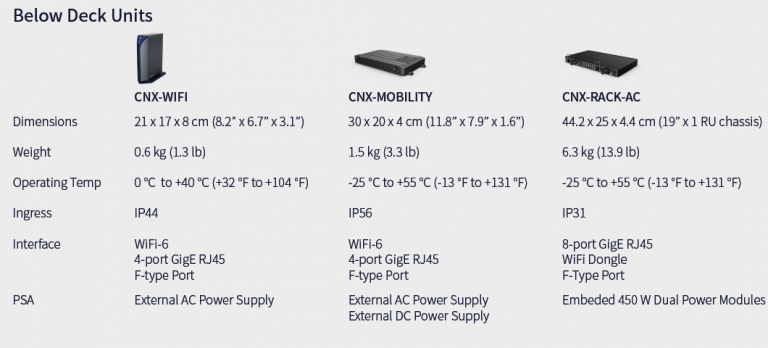

Customer Network Exchange

Intellian’s Customer Network Exchange (CNX) units are a key component of user terminal installations. They provide both power and data connectivity to the flat-panel antenna, as well as interfacing with customer equipment and networks. A range of CNX variants is available to support specific deployment scenarios.
